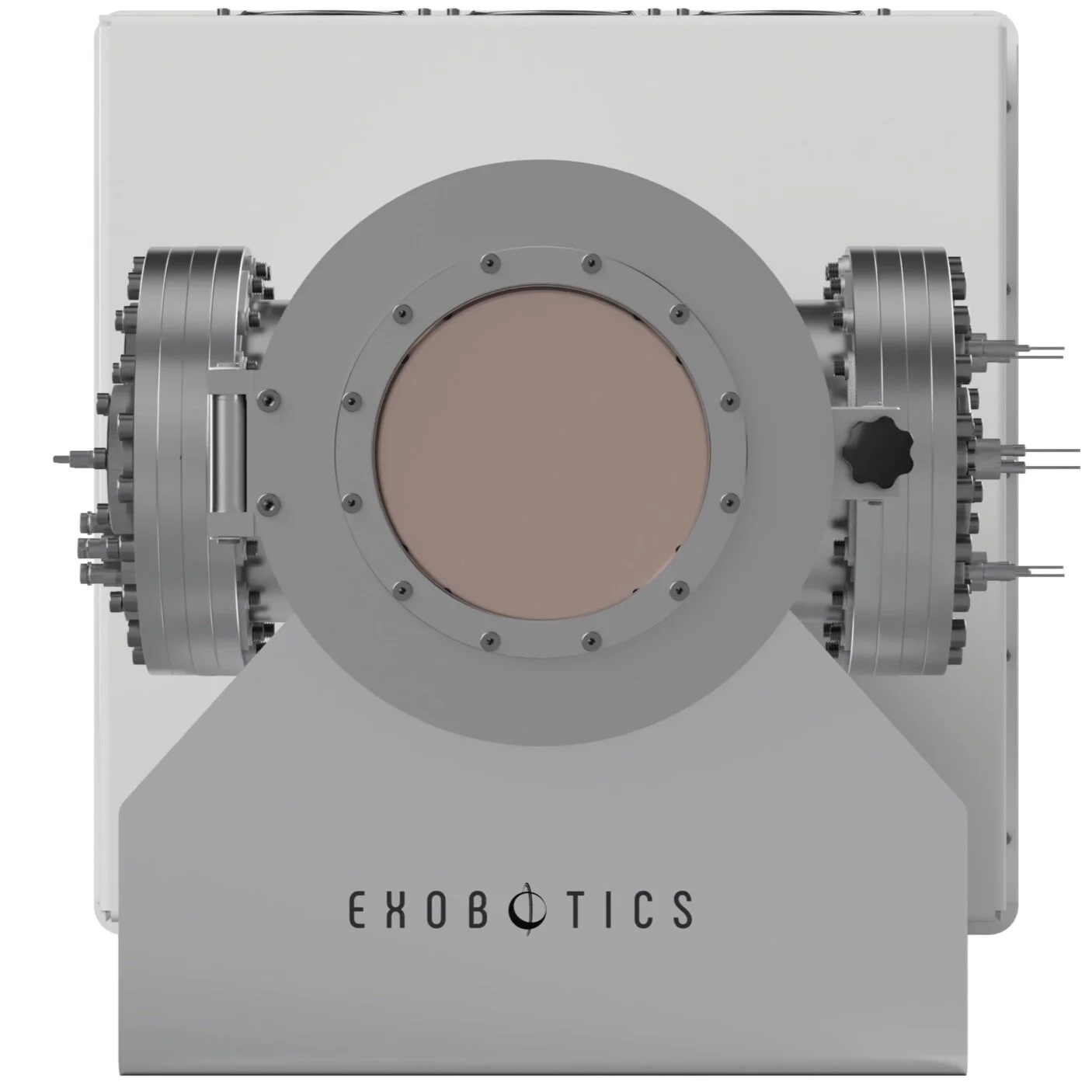

XO-VAC-PLUS offers two extra DN160 flanges that can be tailored to the customer applications. The standard port configurations use ConFlat flanges and are all at the same price. The designs available are:

• x3 DN40

• x1 DN160

• x1 DN100

• x1 DN40 and x4 DN16

• x1 DN40 and x6 DN16

• x6 DN16

• x8 DN16

Please note that all ports do not have to be populated from Day 1. Unused ports can be covered with blanks. Schematics and location of the ports are available on-demand. Customers can specify the orientation of flanges. The angular position resolution depends on the flange size (60° for DN16 and DN40, 45° for DN63, 22.5° for DN100 and 18° for DN160).

Custom port configurations that require specific location of ports can be designed and manufactured on-demand without increasing the lead time of XO-VAC-PLUS. Minor engineering fees might be charged depending on the custom part design and tolerances.
