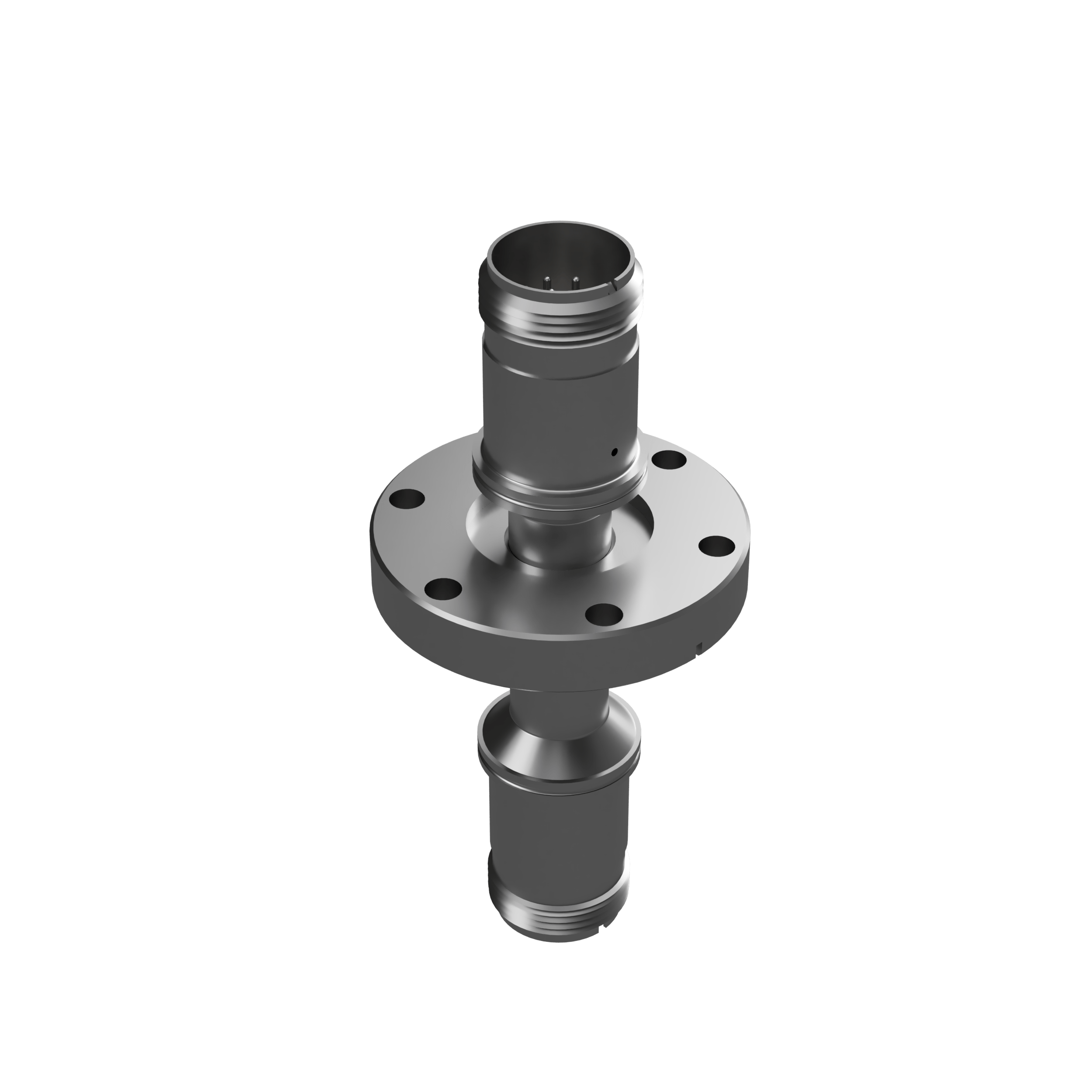

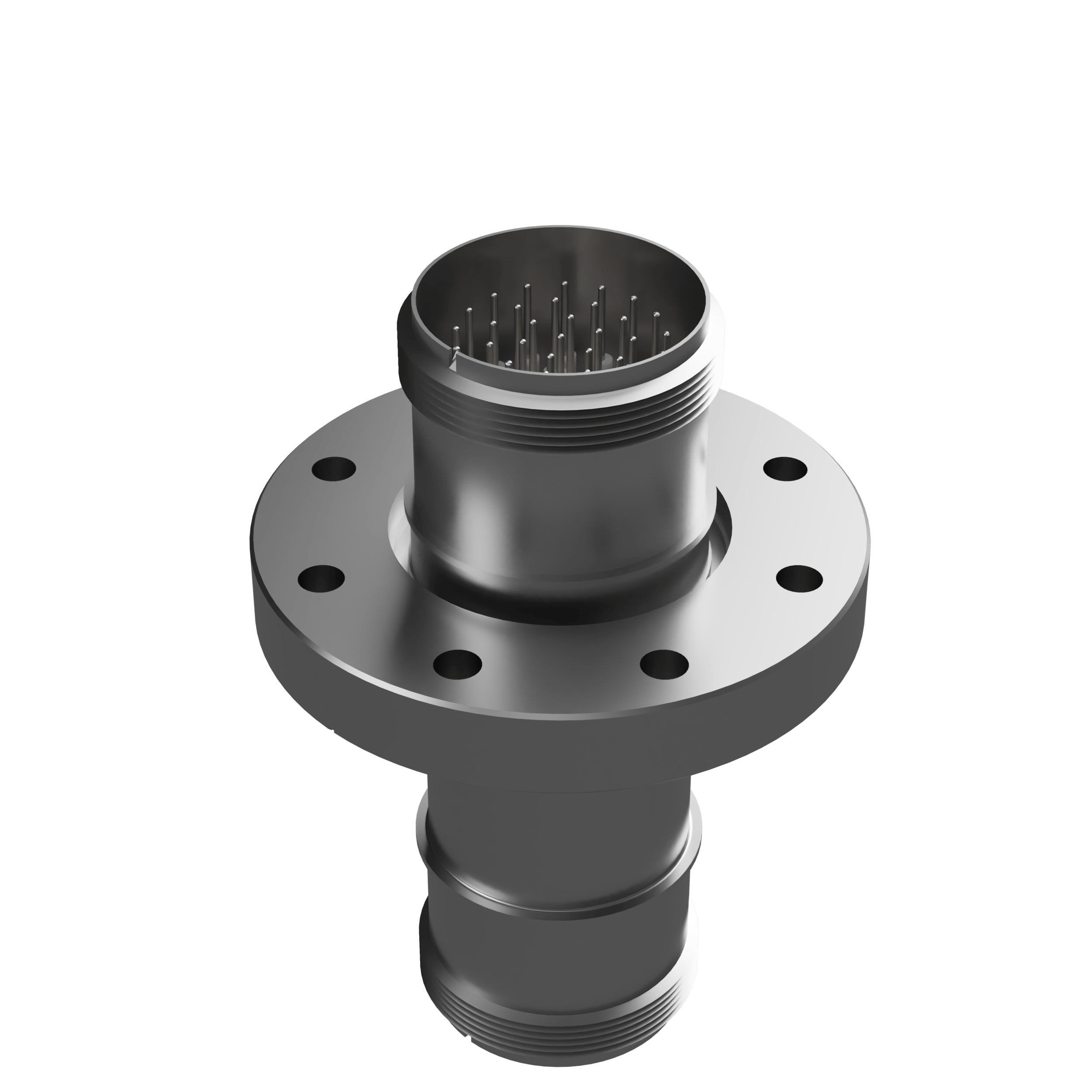

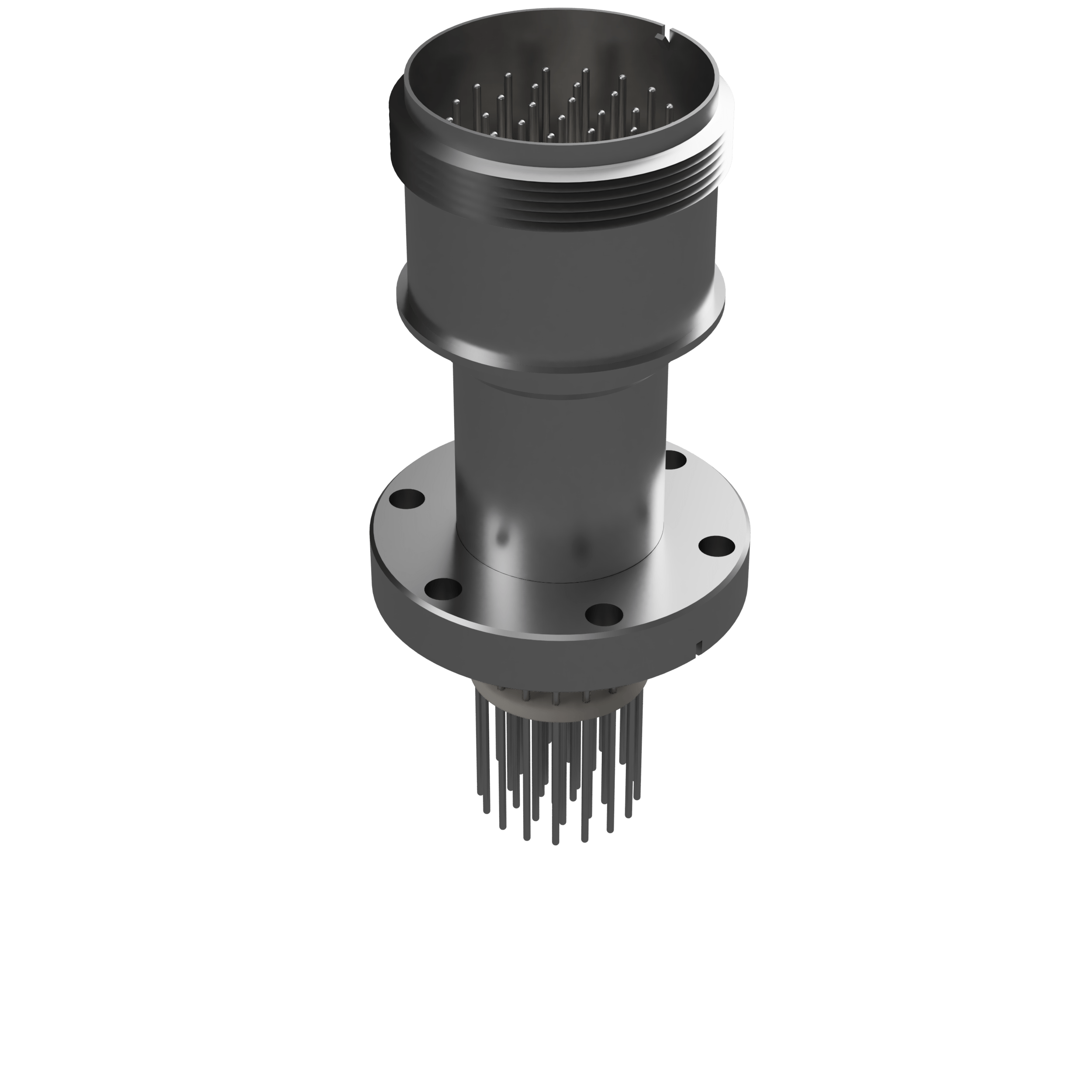

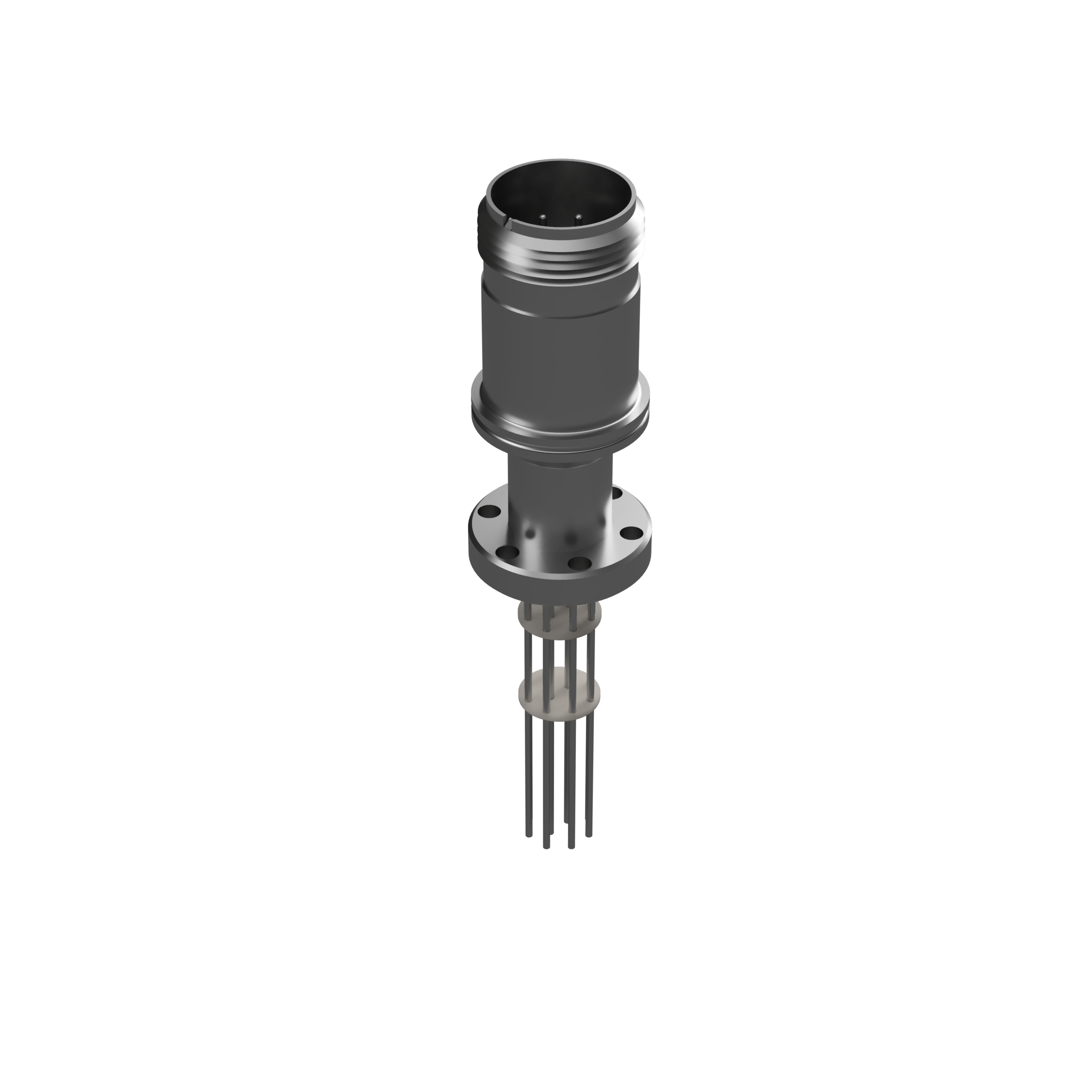

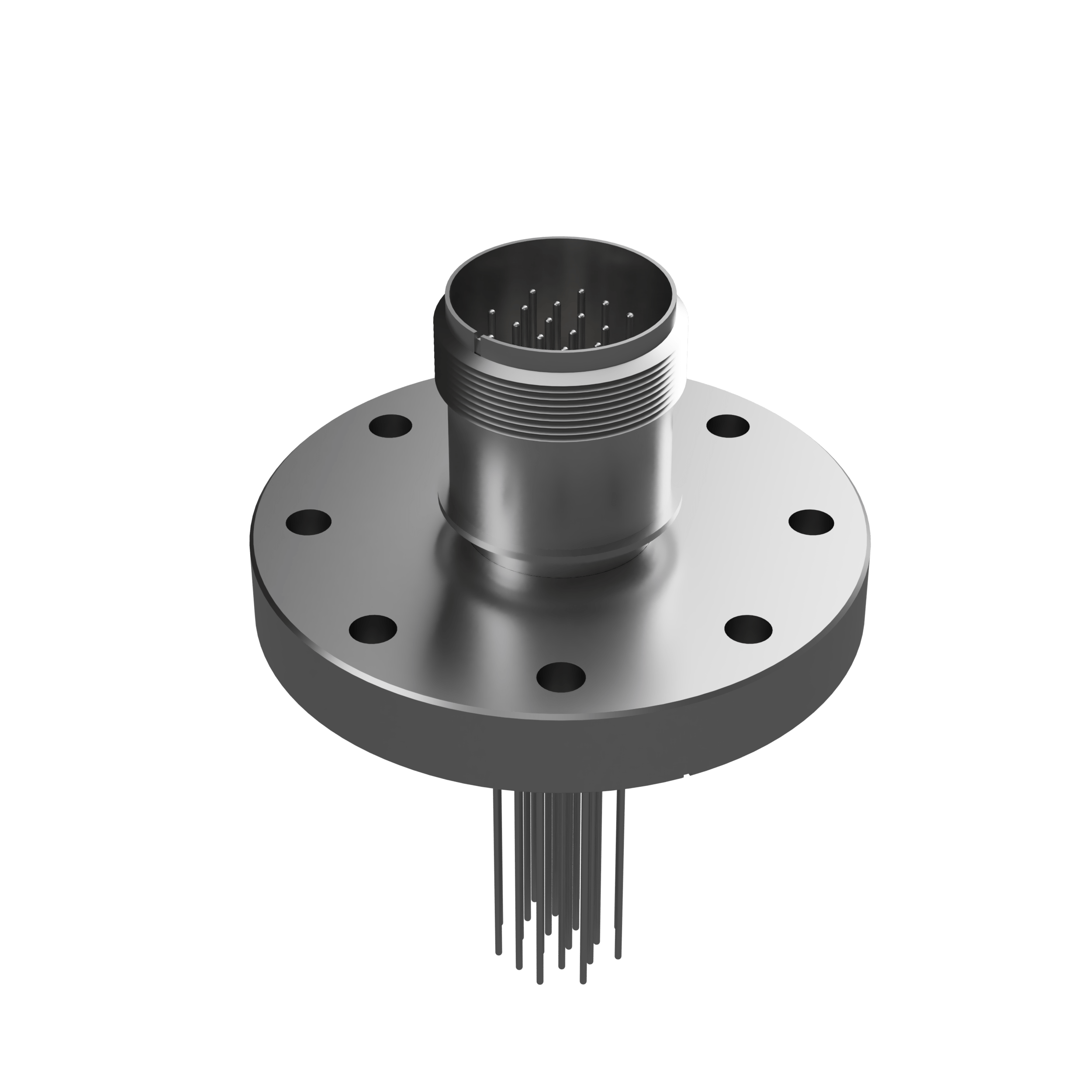

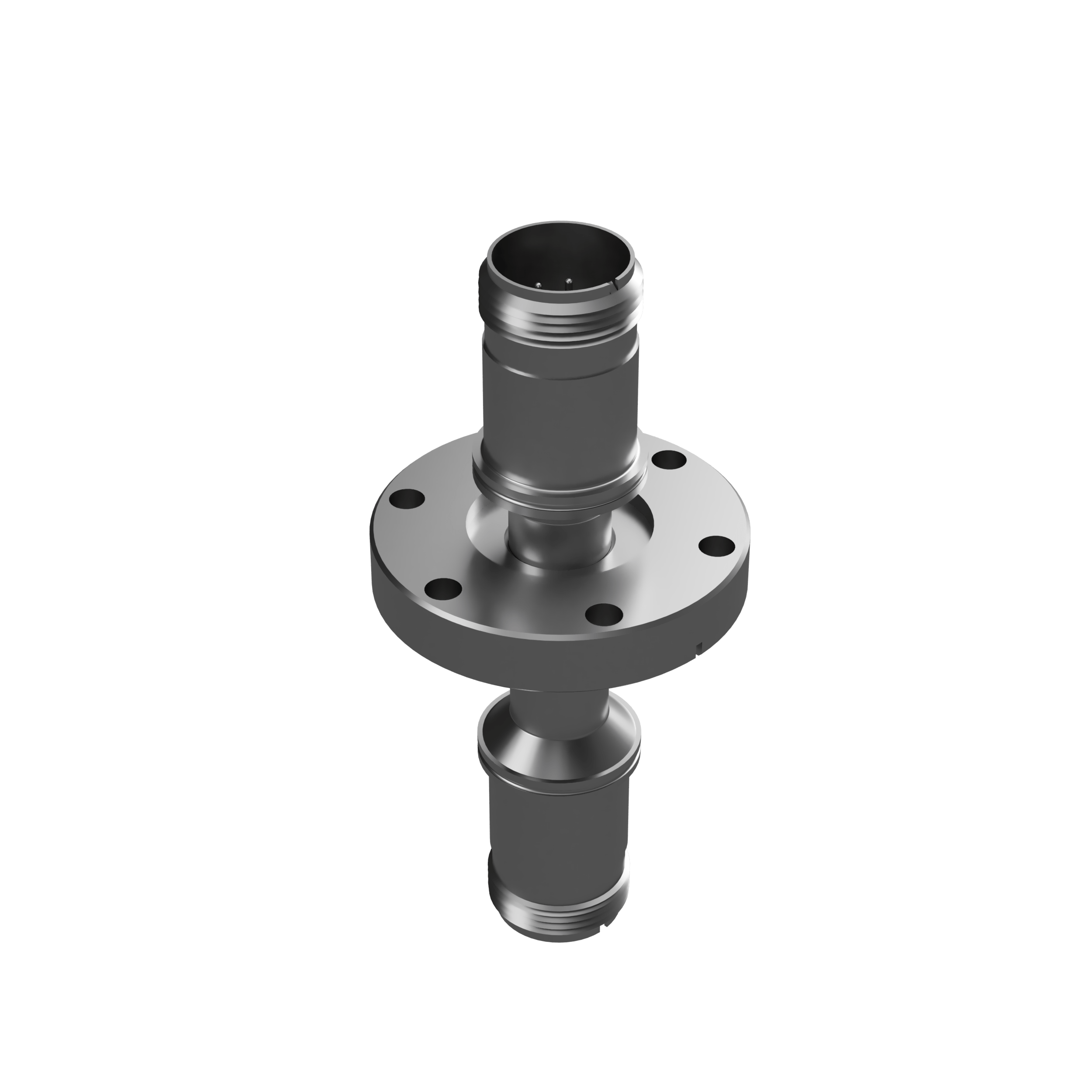

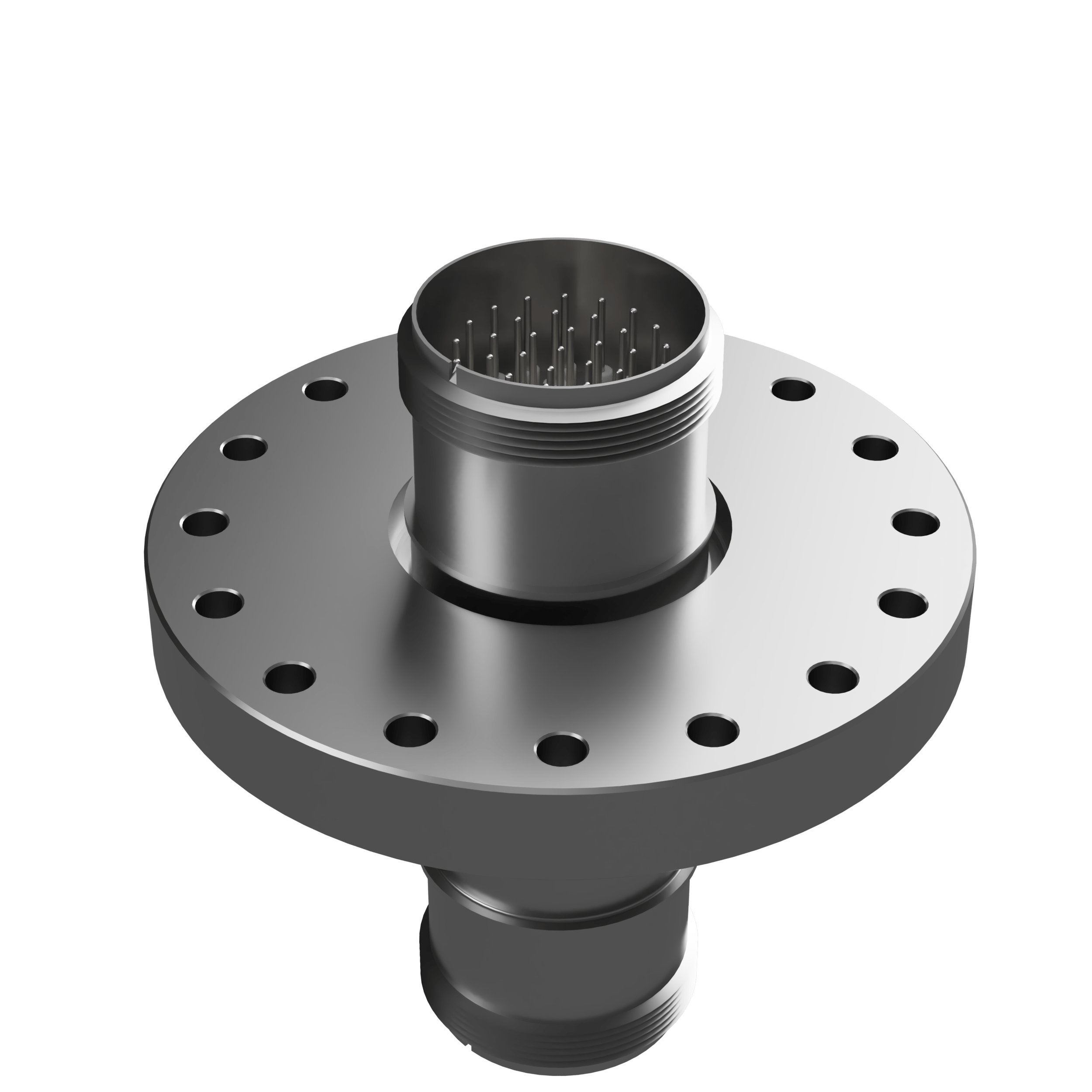

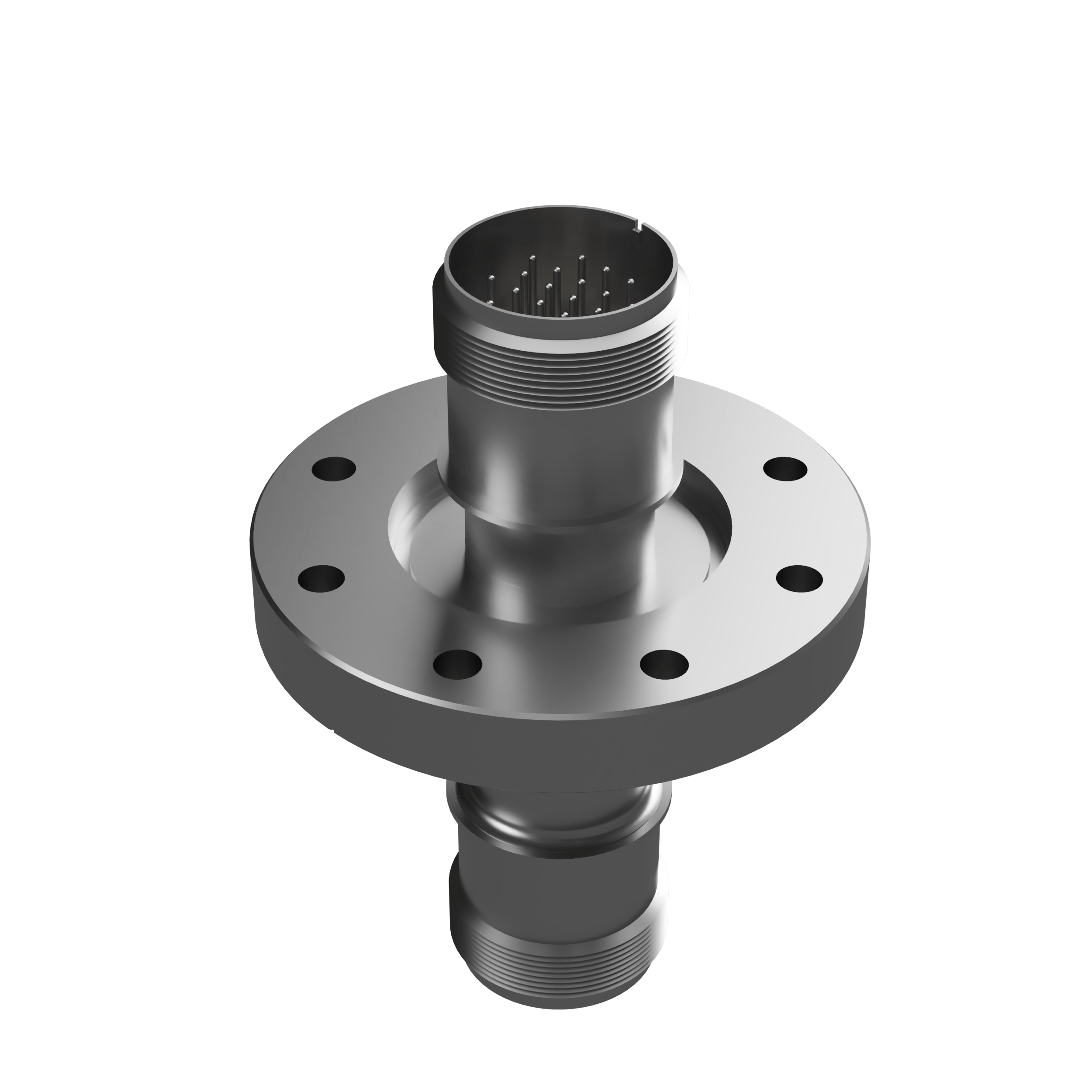

700V, 10A per pin MIL-C-5015 Feedthroughs


700V, 10A per pin MIL-C-5015 Feedthroughs

from £193.00
Flange size:
Connectivity:
Number of pins:
Pin diameter:
Quantity:
Add To Cart

Technical Information

Product materials: Stainless steel, alumina ceramic, alumel

Max operating temperature: -55°C to 450°C

General electrical properties:

  • Voltage: 700 DC max.

  • Current: 10A max per pin at room temperature
